Series No:00113

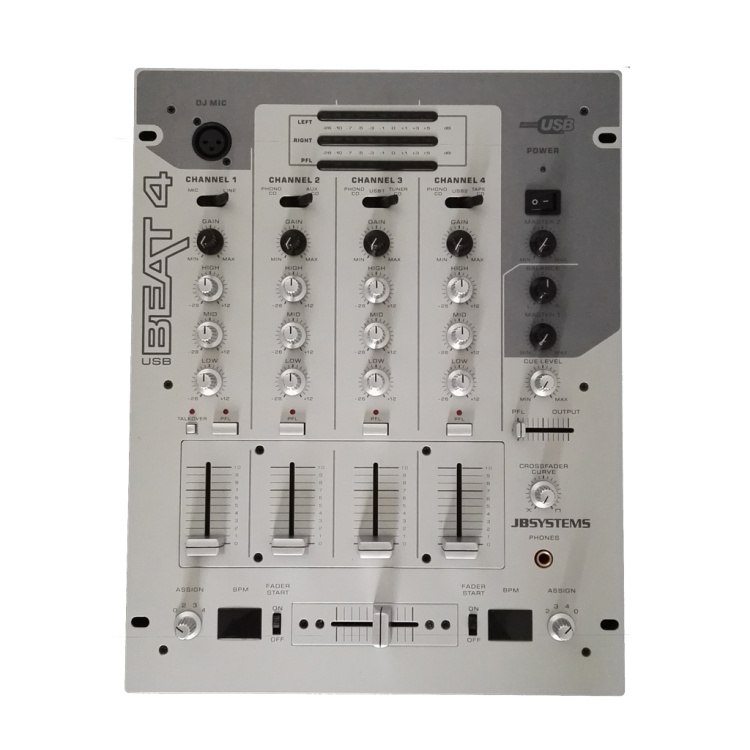

Item Name:4CH DJ Mixer

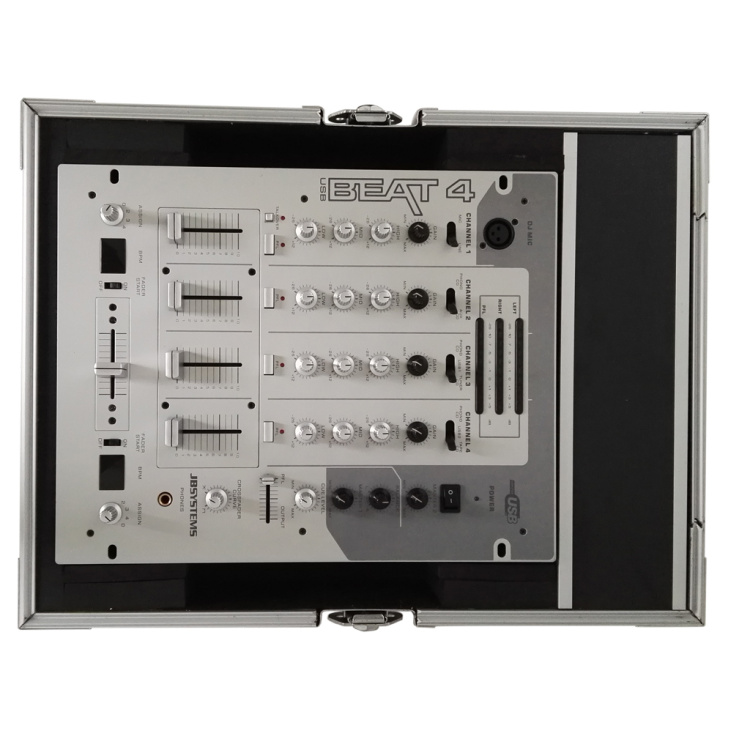

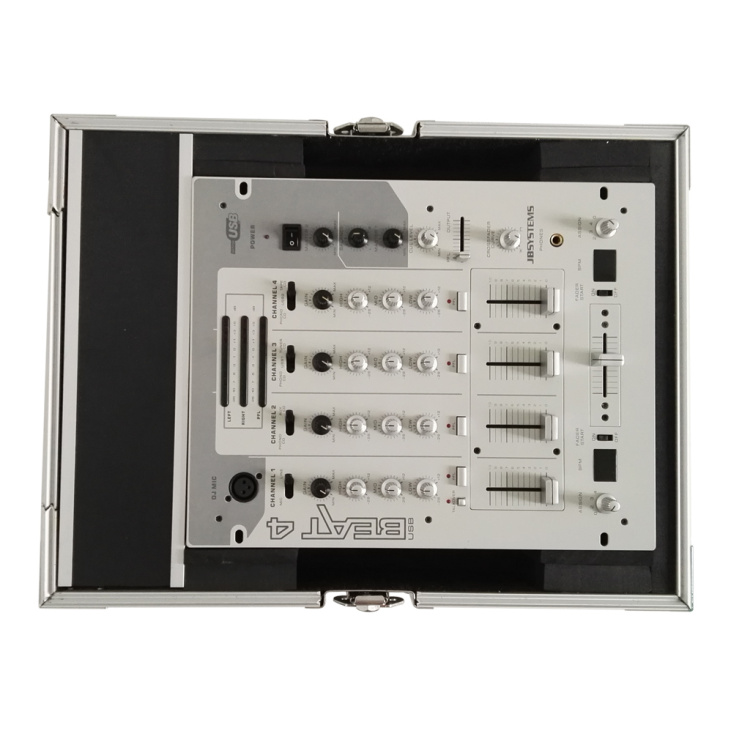

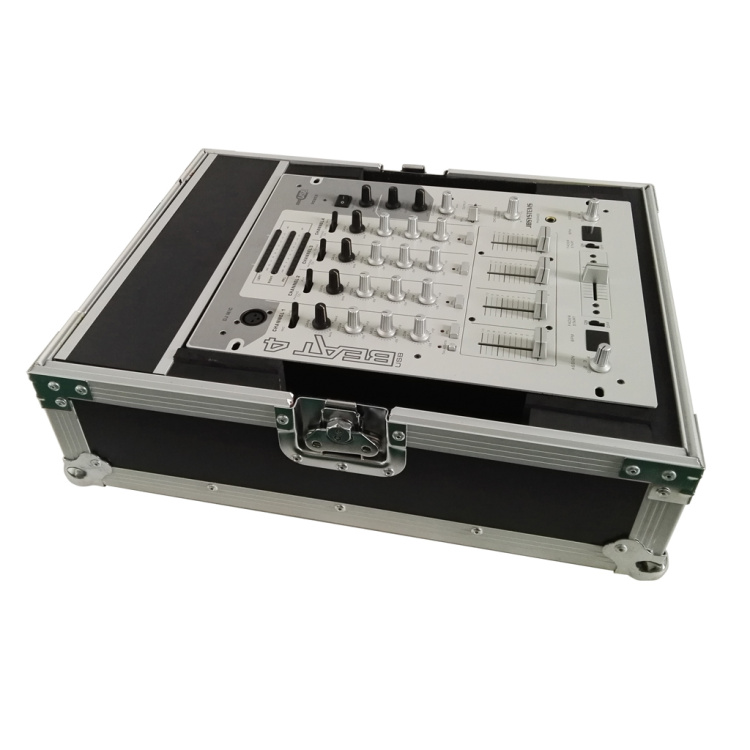

Item Code:BEAT4USBCASESET
Bar Code:
Brand:JBSYSTEMS
MOQ: 0 PCS
Price:USD 1-9 PCS
Price:USD 10-49 PCS
Price:USD 50-99 PCS
Price:USD 100-499 PCS
Price:USD >500 PCS
QTY:pcs
This series of DJ mixers features innovative design, optimum layout. Its features of unique BPM display, controls of comfortable feeling with rubber capsule, simple and reliable operation, are all revolving around its practical considerate design,enlarging operating ease and precision Built-in low leakage magnetic flux power supply, standard 19” rack design, makes it easier for portability and setting-up.
Product Description:
*13 inputs on 4 channels (7line, 3phones, 1micro, 2USB)
* 2 Bidirectional USB connections (play and record at the same time!)
*Completely redesigned for superior sound quality and very low noise
*1 separate balanced DJ micro with talkover
*Gain, high, mid, low controls with -26dB kill function on all channels
*Assignable and easy replaceable VCA-crossfader
*Voltage controlled crossfader with adaptable fader curve
*User replaceable easy gliding steel rail DJ faders
* 2 Master outputs (Master1 with balance control)
*Master1 with balanced XLR outputs
*Stereo LED VU-meters on master
* Mono LED VU-meter for PFL-signal
*Accurate automatic beat counters
*Crossfader starts for compatible CD players
*Pre-fade listening with cue mix option
Technical Information:
Power Supply AC 230 V, 50Hz (34Watt)
Frequency response 20-20.000Hz (+-3dB)
THD + noise:<0.05% @ 1kHz, 0dB, load=47k Ohm
S/N Ratio (IHF-A): >78dB @ 1kHz
USB connections: USB2.0, bidirectional (44.1kHz/16bit) Windows @ MacOS compatible.
USB cable (not included): Lmax=3m
Mic inputs: 2mV @ 3k Ohm
Line/CD inputs: 340mV @47k Ohm
Phono inputs: 3mV @ 47k Ohm
Record output: 775mV @1k Ohm
master1/2 output: 1.55V @ 1k Ohm unbal.
Master 1 output: 2.55V @ 600 Ohm bal.
Talkover: 0dB to -14dB
Channel tone controls: +12dB/-26dB (70Hz, 1kHz, 13kHz)
Headphone: 3V @ 32 Ohm
Dimensions: 294(W) x 372(D) x 93(H) mm
Weight: 5.4kg
