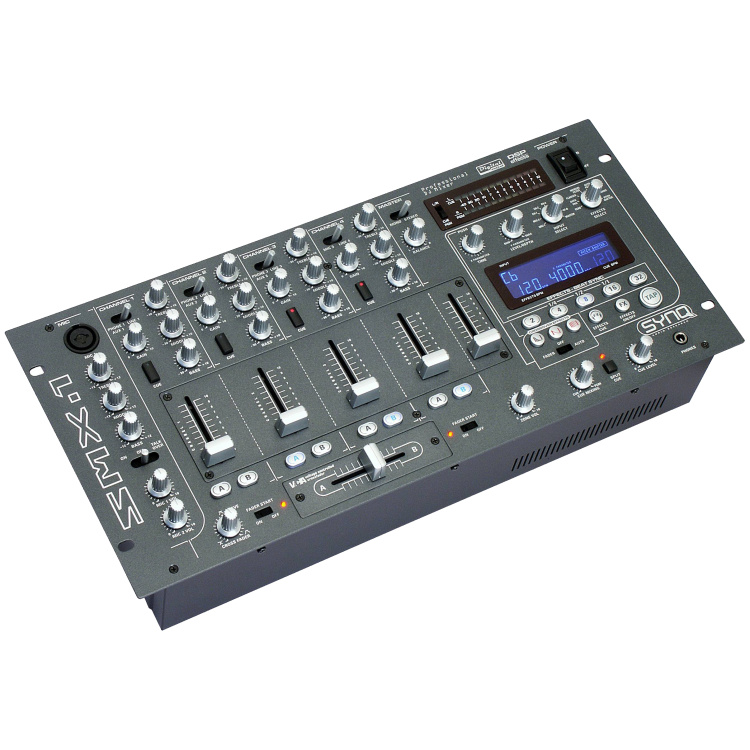

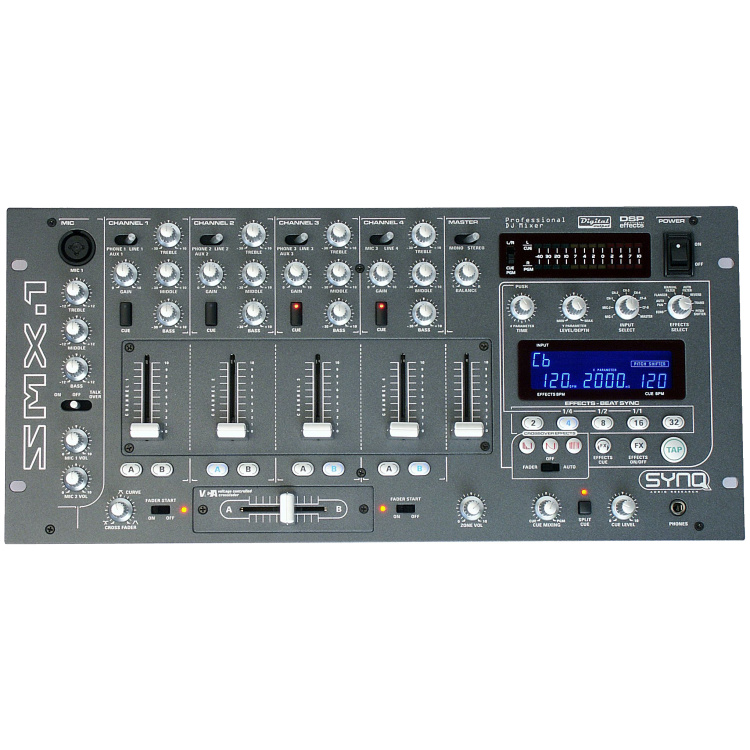

Series No:00102
Item Name:6CH Pro Effect DJ Mixer
Item Code:SMX-1
Bar Code:
Brand:SYNQ
MOQ: 0 PCS
Price:USD 1-9 PCS
Price:USD 10-49 PCS
Price:USD 50-99 PCS
Price:USD 100-499 PCS
Price:USD >500 PCS
QTY:pcs
:: Product Description
13inputs on 6 Channels (2mic + 4channels on fader)
Master with signal trimming (XLR, balanced)
Zone output "master 2" (cinch, unbalanced)3-band tone controls with kill -30dB on all channels

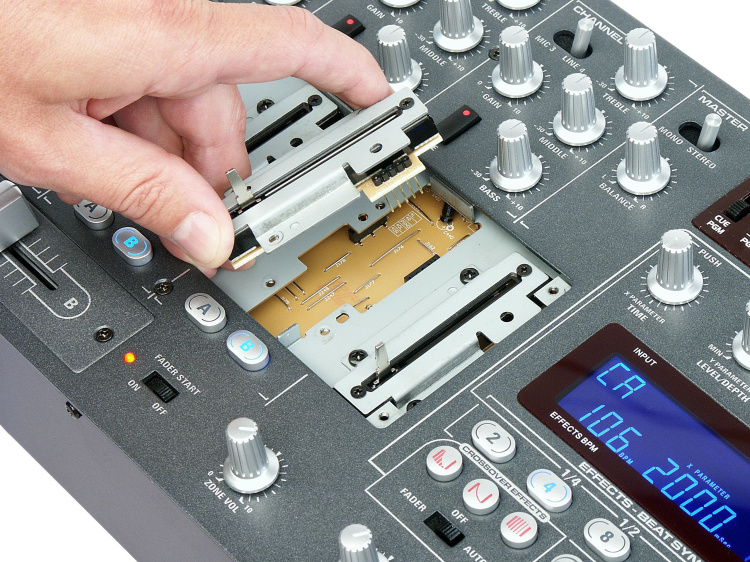

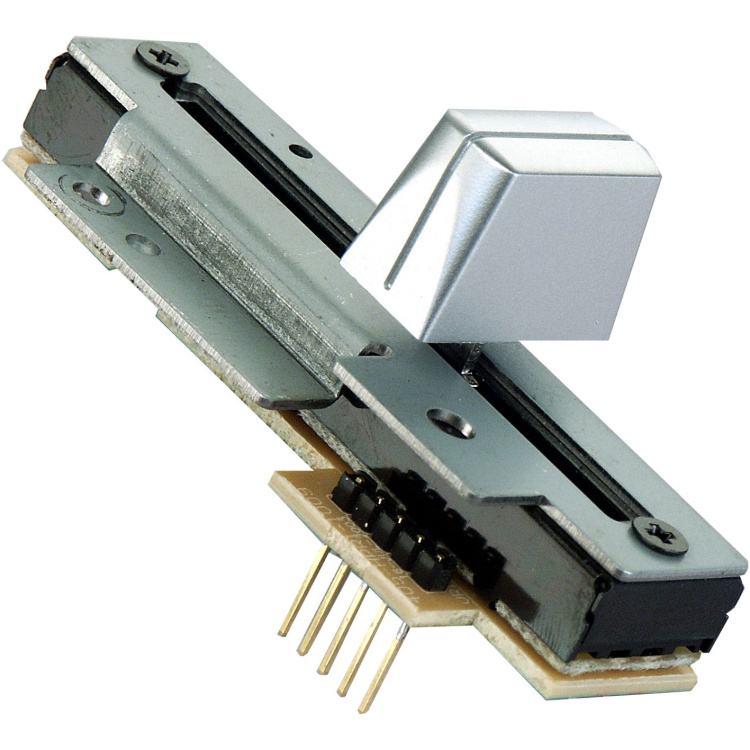

Special, user replaceable, high quality faders
User replaceable VCA controlled cross fader
Easy A/B channel selection for cross fader
Cross fader start control for compatible CD-players
3 Beat synchronized Cross fader mixing effects
Adjustable Cross fader curve (soft sharp cutoff)
Full automatic beat counters
8 Beat synchronized digital effects:
Echo
Autopan
Flanger
Manual filter
Auto filter
Reverb
Trans
Pitch ShifterPreprogrammed effect presets
LCD display with back-light with clear information for both effects and beat counters
Effect Cue function
Coaxial digital S/PDIF output for recording
Microphone talk-over function
High power Phones output with "split cue" and "cue/pgm mixing" possibility
Selectable (cue/pgm) LED VU-meter with peak hold.
Very compact design. (482 x 221 x 87.5mm (19" / 5U)
:: Technical Information
Input/output impedance & sensitivity (EQ flat, max. gain, level meter = 0dB)
Line input: 340mV @ 20kΩ (max = +4dBV)
Aux input: 340mV @ 47kΩ (max = +4dBV)
Phono input: 3,4mV @ 47kΩ (max = -40dBV)
Mic inputs: 1,7mV @ 2,2kΩ (max = -42dBV)
Record output: 775mV @ 1kΩ
Master unbalanced: 1,55V @ 100Ω
Master balanced: 3,00V @ 200Ω
Zone output: 1,55V @ 100Ω
Headphones: 3,00V @ 33Ω
Digital output: 1,00V @ 75Ω
Maximum output (EQ flat, max. gain, FX off, THD=1%, load is 100kΩ )
Master: More than +18dBV (8,0V)
Zone: More than +18dBV (8,0V)
Phones: More than + 9,5dBV (3V) @ 32Ω
Frequency response (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
Line + aux: 25 - 20.000Hz +/-1dB
Phono: 25 - 20.000Hz +1/-1.5dB (RIAA)
Mic : 25 - 20.000Hz +1/-1.5dB
THD + Noise (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
Line + aux: less than 0,05% (25 - 20.000Hz)
Channel Crosstalk (EQ flat, max. gain, Master = 0dBV)
More than 75dB @ 1kHz
Tone controls:
Mic: -12dB / +12dB @ 70Hz - 1kHz - 13kHz.
Input channels: -30dB / +10dB @ 70Hz - 1kHz - 13kHz.
General specs:
Power supply: 230V~ 50Hz.
Power consumption: 34Watts
Dimensions: 482 x 221 x 87.5mm (WxDxH)
Weight : 5.25kg.
