Series No:00294
Item Name:400W Amplifier
Item Code:VX400
Bar Code:
Brand:JBSYSTEMS
MOQ: 0 PCS
Price:USD 1-9 PCS
Price:USD 10-49 PCS
Price:USD 50-99 PCS
Price:USD 100-499 PCS
Price:USD >500 PCS
QTY:pcs

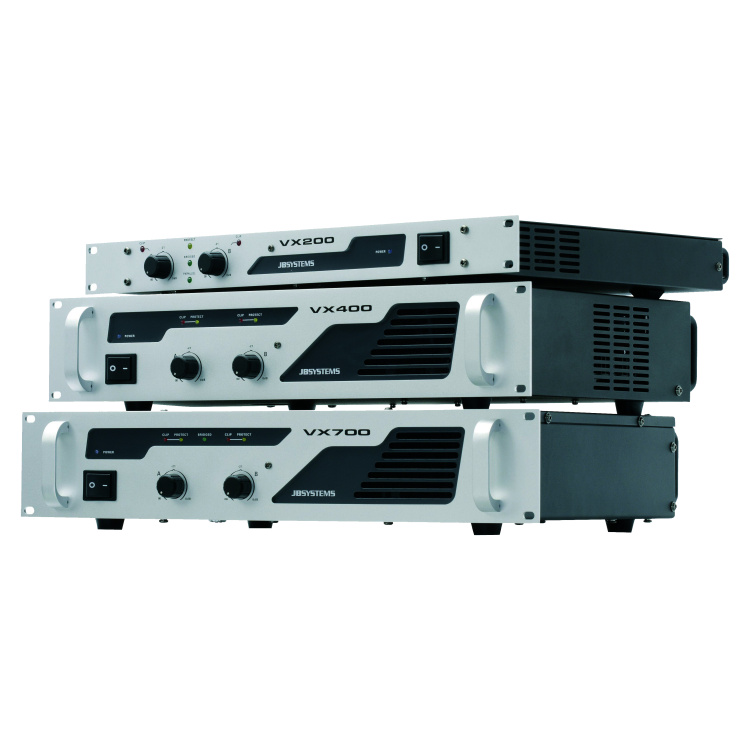

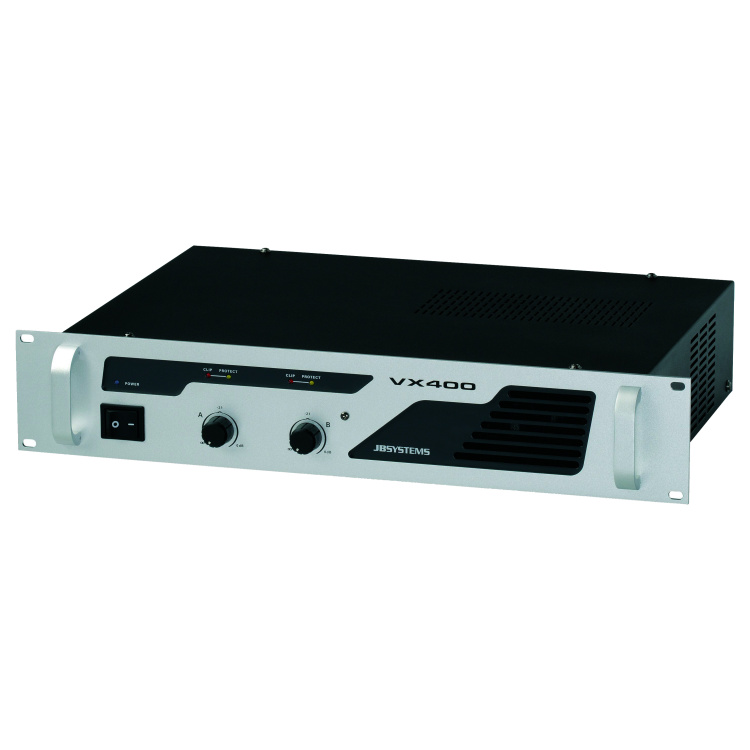

JBSYSTEMS AMP Series is a profesional digital amplifir for small power speaker below 400watt application! it is widely used in meeting room hotel , shops etc. 19" 1U compact design!
:: Product Description
* Professional 2-channel power amplifier
* Extremely compact 19" housing, height only 1U (44mm)
* Lightweight design based on soft start switch mode power supply
* 3 amplifier modes: stereo, mono and bridge
* Very efficient cooling, using temperature controlled fans.
* Peak limiter prevents signal distortion
* Switchable 75Hz / -24dB low cut filter
* Adjustable input sensitivity: 0,775V ~ 1,0V ~ 1,44V
* Ground lift switch
* DC fault + high temperature + overload and short circuit protections

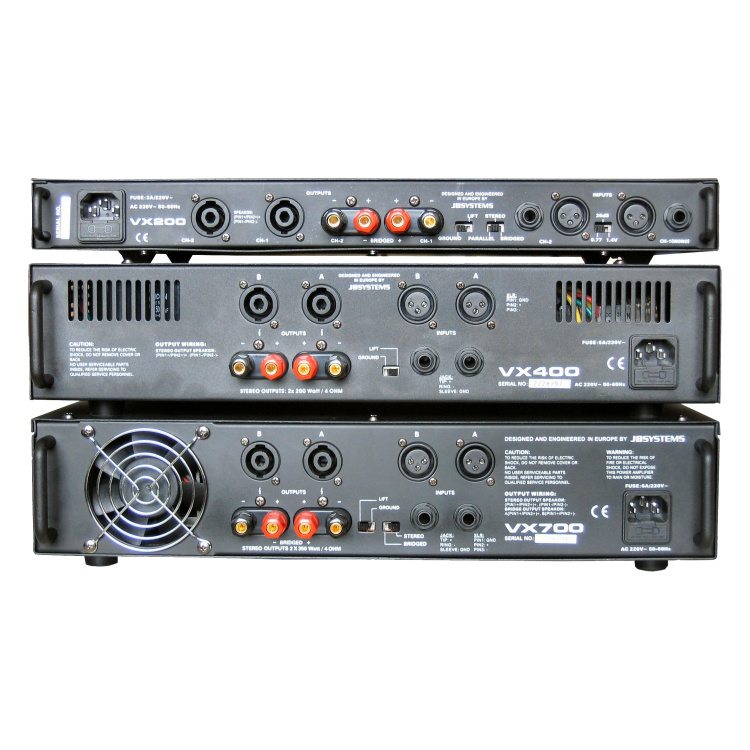

* Balanced XLR-inputs & jack-outputs: daisy chaining of several amplifiers
* 3 Speakon(R) outputs: left + right channels + bridge
:: Technical Information
* Power stereo 4Ω: 2x 200Wrms
* Power stereo 8Ω: 2x 130Wrms
* Power bridge 8Ω: 1x 400Wrms
* Peak limiters: yes
* Freq. Response (+/-1dB): 20-20.000Hz
* Input sensitivity: 0,775V~1,0V~1,44V
* S/N ratio: >100dB
* Weight: 3.7kg
* Dimensions: 483x235x44 (19" / 1U)
