Series No:00202

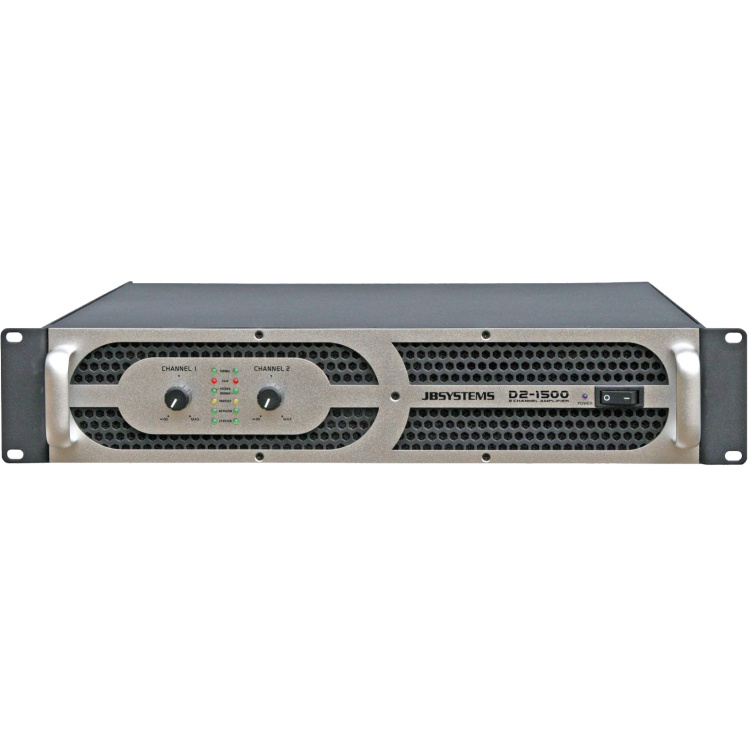

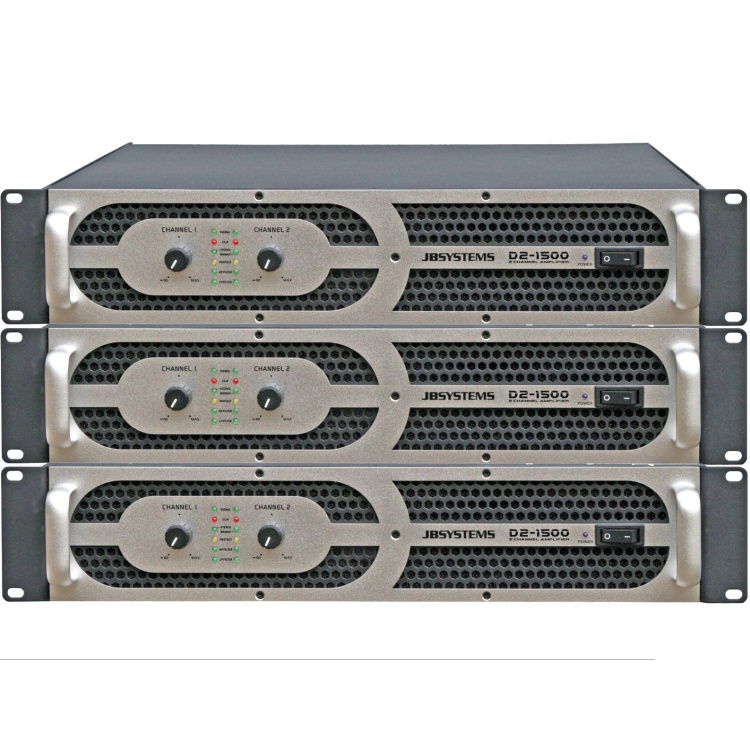

Item Name:1500W Amplifier

Item Code:D2-1500

Bar Code:

Brand:JBSYSTEMS

MOQ: 0 PCS

Price:USD 1-9 PCS

Price:USD 10-49 PCS

Price:USD 50-99 PCS

Price:USD 100-499 PCS

Price:USD >500 PCS

QTY:pcs

Add to Cart

Inquiry

Buy

 Product Description

       Professional 2-channel amplifier with built-in active crossover.
       Very compact housing, only 2U (88mm) high
       Oversized power supply guarantees a powerful bass reproduction
       Built-in active crossovers no need for separate crossover units to setup an active system.
       Each channel equipped with a 24dBoctave crossover adjustable crossover point (90~250Hz) and 3 operation modes HPF (high pass filter) + LPF (low pass filter) + OFF (no filter)
       Two amplifier modes stereo and bridge
       Peak limiters can be switched onoff
       Soft start power supply
       Very efficient cooling
       DC fault protection
       High temperature protection
       Overload and short circuit protections
       Balanced inputs with XLR connectors

       XLR-outputs daisy chaining of several amplifiers
       3 Speakon outputs left + right channels + bridge
       3 models with different output power available

:: Technical Information

Power stereo 8Ω (1kHz, THD+N < 0,1%) 2x 500Wrms
Power stereo 4Ω (1kHz, THD+N < 0,1%) 2x 750Wrms
Power bridge 8Ω (1kHz, THD+N < 0,1%) 1500Wrms
Freq. Resp. (+/-0.5dB) = 20-20.000Hz
Built-in active crossover :  24dB/oct. crossover 90~250Hz
Input sensitivity:  770mV
Input impedance:  20k&#937; Balanced, 10k&#937; unbalanced
S/R ratio :  >90dB
Damping factor:  8&#937;/1kHz >600
Cooling:  Dual speed fan cooling
Input Connections:  XLR (bal and unbal)
Output Connections:  3 Speakon for Stereo & Bridge Output
Power Supply:  230Vac / 50Hz
Dimensions(mm) :  482 x 473 x 88
Weigth (kg) : 20,5
THD: Crosstalk @ Rated Output 8&#937;/1kHz = Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse Thermal Cut

Download

User Manual
Product Sheet
Picturea
Technical Data
